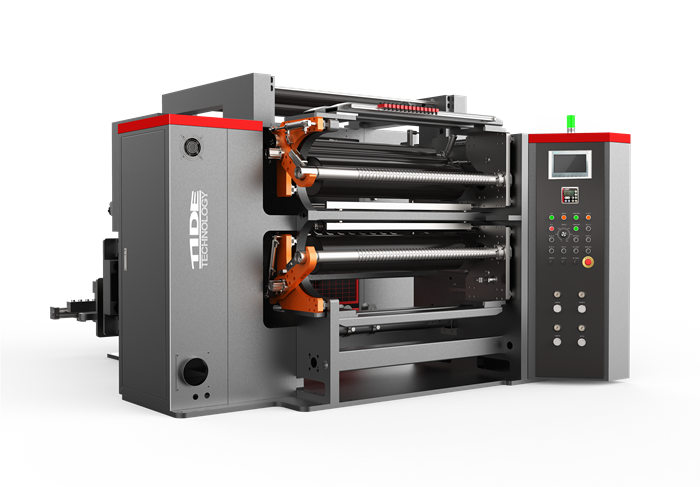

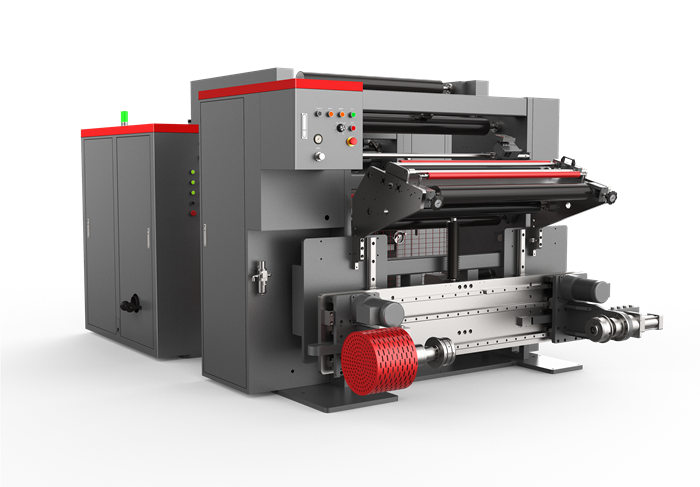

DS400 Digital Control Hi-speed Slitter
CHARACTERISTICS
· Slitting for very shin or soft tension material(like capacitance film/battery diaphagm/battery aluminum soft film/aluminum foil)
· Reel loading automatically
· Unwinding width adjusting automatically
· Servo driving system
· Razor knife slitting
· Reel loading automatically
· Unwinding width adjusting automatically
· Servo driving system
· Razor knife slitting
· Splicing table with nip bars to fix the material
· Separated tension control system
· Air shafts for rewinding
· Marking the rewinding core position by laser
· Self diagnosis
· Maintenance information on touch screen
· Remote diagnosis and services
· Separated tension control system
· Air shafts for rewinding
· Marking the rewinding core position by laser
· Self diagnosis
· Maintenance information on touch screen
· Remote diagnosis and services
TECHNICAL DATA
| Standard | Option | |
|---|---|---|
| · width of working face: | 1050mm | 1350mm |
| · Diameter of unwinding: | φ800mm | φ1000mm |
| · Thickness of material: | 2μm-15μm | 50μm-200μm |
| · Diameter of rewinding: | φ400mm | φ600mm |
| · Width of rewinding: | 5mm(min) | -- |
| · Working speed: | 400m/min(max) | 500m/min(max) |
OPTION
* Expander roller
* Wave slitting mode for special material
* Unloading the finished rolls automatically
* Air friction shafts rewinding
* Wave slitting mode for special material
* Unloading the finished rolls automatically
* Air friction shafts rewinding
* Circle knife slitting mode
* 6 inch rewinding mode
* Link to ERP
* 6 inch rewinding mode
* Link to ERP
