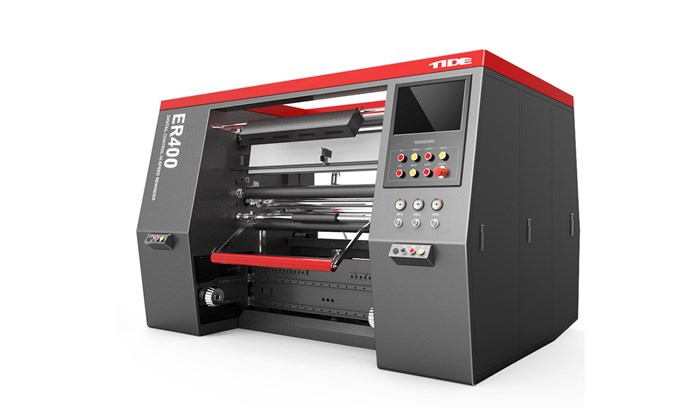

ER400 Digital Control Hi-speed Rewinder
CHARACTERISTICS
· Rewinding and inspecting for film, paper or laminated material
· Splicing table with nip bars to fix the material
· Separated tension control system
· Shaftless with air chucks for rewinding
· Maintenance information on touch screen
· Splicing table with nip bars to fix the material
· Separated tension control system
· Shaftless with air chucks for rewinding
· Maintenance information on touch screen
· Servo driving system
· Center rewinding mode
· Unwinding roll loading sami-automatically
· Self diagnosis
· Remote diagnosis and services
· Center rewinding mode
· Unwinding roll loading sami-automatically
· Self diagnosis
· Remote diagnosis and services
TECHNICAL DATA
| Standard | Option | |
|---|---|---|
| · Width of working face: | 1300mm | 1800mm |
| · Diameter of rewinding: | φ800mm(max) | φ1200mm(max) |
| · Thickness of material: | 12-120μm | more than 120μm |
| · Diameter of rewinding: | φ800mm | φ1200mm |
| · Working speed: | 400m/min(max) | 500m/min(max) |
OPTION

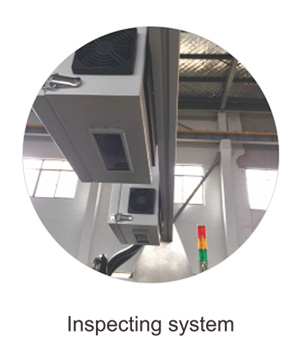

* Intergration of inspection system
* Easy tear of line
* Stop by pictures accounting
* Unwinding width adjusting automatically
* Easy tear of line
* Stop by pictures accounting
* Unwinding width adjusting automatically
* Trim edge slitting system
* Air hole on line
* Link to ERP
* Air hole on line
* Link to ERP
