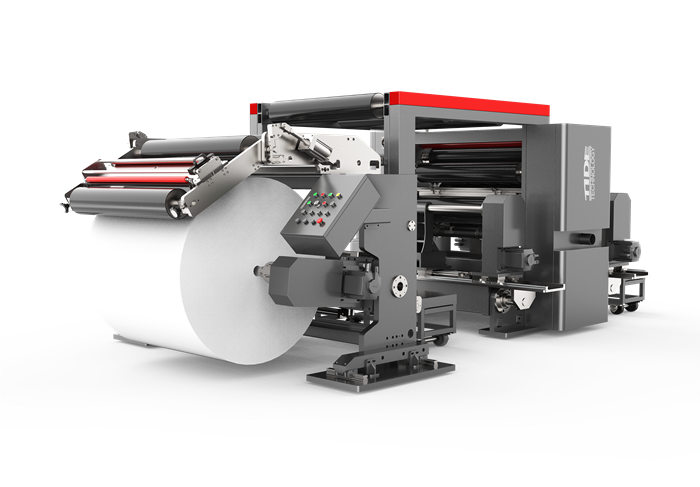

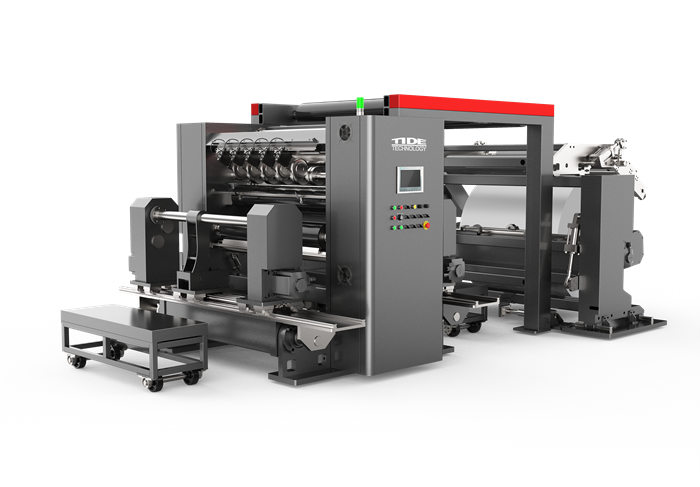

KS300 Digital Control Hi-speed Slitter
CHARACTERISTICS
· Sliting for heavy paper and film sheet(such as tetra pack for milk and juice)
· Unwinding width adjusting automatically
· Dancing roller
· Servo driving system
· Circle knife slitting
· Independent rewinding unit for each rewinding roll
· Trolleys for unloading the finished rolls form the rewinding units at each side automatically
· Unwinding width adjusting automatically
· Dancing roller
· Servo driving system
· Circle knife slitting
· Independent rewinding unit for each rewinding roll
· Trolleys for unloading the finished rolls form the rewinding units at each side automatically
· Reel loading automatically
· Splicing table with nip rolls to fix the material
· Expander roller
· Separated tension control system
· Dust proof and clean automatically
· Shaftless with chucks
· Maintenance information on touch screen
· Self diagnosis
· Remote diagnosis and services
· Splicing table with nip rolls to fix the material
· Expander roller
· Separated tension control system
· Dust proof and clean automatically
· Shaftless with chucks
· Maintenance information on touch screen
· Self diagnosis
· Remote diagnosis and services
TECHNICAL DATA
| Standard | Option | |
|---|---|---|
| · Width of working face: | 1300mm | 3000mm(max) |
| · Diameter of unwinding: | φ1300mm(max) | φ1800mm(max) |
| · Thickness of material: | 50g/㎡-400g/㎡ | 500g/㎡ |
| · Diameter of rewinding: | φ1300mm(max) | φ1800mm(max) |
| · Width of rewinding: | 300mm(min) | 300mm(min) |
| · Working speed: | 300m/min(max) | 500m/min(max) |
OPTION
* Stop by pictures accounting
* Air friction shafts rewinding mode
* Link to ERP
* Air friction shafts rewinding mode
* Link to ERP
