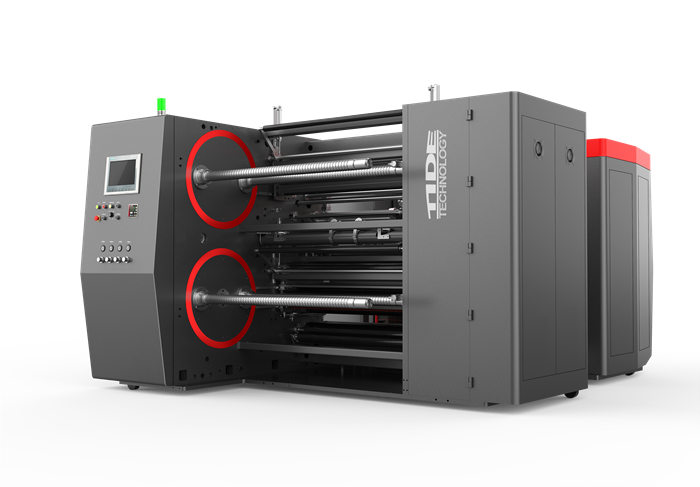

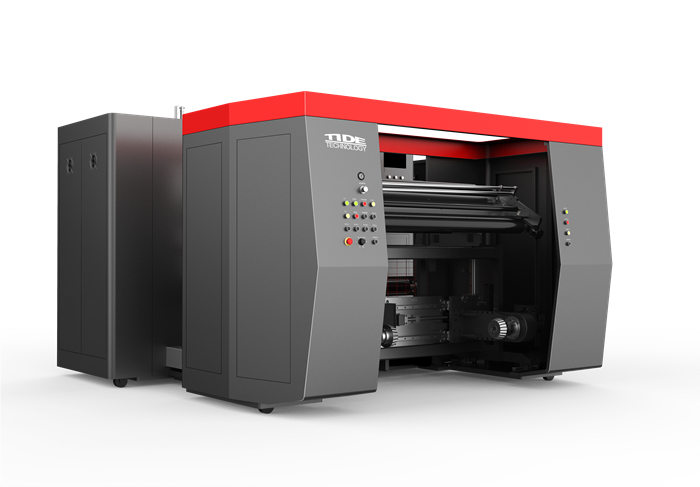

LS800 Digital Control Hi-speed Slitter
CHARACTERISTICS
· Slitting for film, paper or laminated material
· Unwinding width adjusting automatically
· Servo driving system
· Razor knife slitting
· Center rewinding mode
· Marking the rewinding core position by laser
· Unloading the finished rolls automatically
· Maintenance information on touch screen
· Unwinding width adjusting automatically
· Servo driving system
· Razor knife slitting
· Center rewinding mode
· Marking the rewinding core position by laser
· Unloading the finished rolls automatically
· Maintenance information on touch screen
· Unwinding roll loading sami-automatically
· Splicing table with nip bars to fix the material
· Separated tension control system
· Air friction shafts for rewinding
· Switch the rewinding shafts automatically
· Self diagnosis
· Remote diagnosis and services
· Splicing table with nip bars to fix the material
· Separated tension control system
· Air friction shafts for rewinding
· Switch the rewinding shafts automatically
· Self diagnosis
· Remote diagnosis and services
TECHNICAL DATA
| Standard | Option | |
|---|---|---|
| · Width of working face: | 1300mm | 1800mm(max) |
| · Diameter of unwinding: | φ800mm(max) | φ1200mm(max) |
| · Thickness of material: | 12μm-150μm | more than 150μm |
| · Diameter of rewinding: | φ600mm(max) | -- |
| · Width of rewinding: | 50mm(min) | 25mm(min) |
| · Working speed: | 800m/min(max) | 1000m/min(max) |
OPTION
* Expander roller
* Circle knife slitting mode
* Air hole on line
* Gap roller rewinding mode
* Locating the razor position automatically
* Automatically tape system for finished rolls and new cores
* Circle knife slitting mode
* Air hole on line
* Gap roller rewinding mode
* Locating the razor position automatically
* Automatically tape system for finished rolls and new cores
* Dancing roller
* Easy tear on line
* Stop by pictures accounting
* 6 inch rewinding mode
* Link to ERP
* Automatically web cutting system
* Easy tear on line
* Stop by pictures accounting
* 6 inch rewinding mode
* Link to ERP
* Automatically web cutting system
